This guide demonstrates how the Forte Rules Engine was integrated into the Martian Mining demo application to enforce compliance rules on the $KRYPT ERC-20 token. You can see this implementation in action at martianmining.io. The $KRYPT token uses two critical compliance rules:
  • OFAC Sanctions Screening: Prevents transfers to sanctioned addresses
  • KYC Access Level Requirement: Ensures recipients have completed appropriate KYC verification

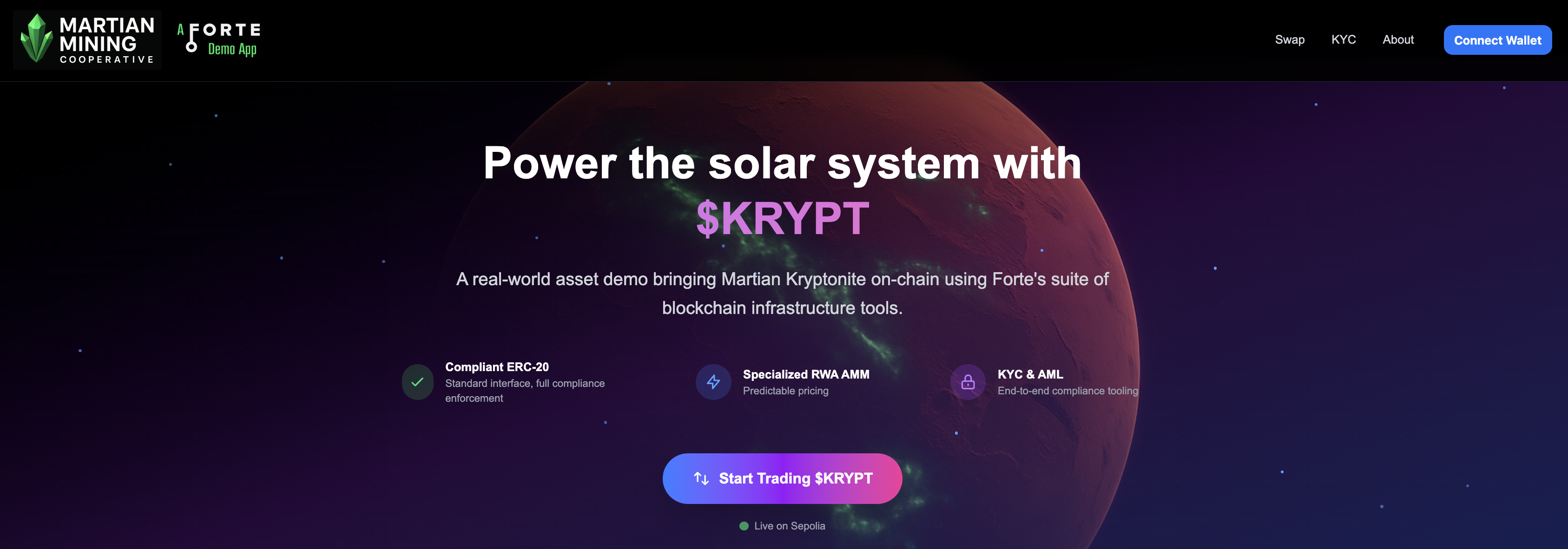

mmc-main-page

Martian Mining Demo

See the $KRYPT token and Rules Engine in action on the live demo site

​
Policy Overview

The $KRYPT policy enforces compliance checks on every transfer operation. When a user attempts to transfer tokens, the Rules Engine:
  1. Checks if the recipient is on the OFAC sanctions list
  2. Verifies the recipient has completed sufficient KYC verification
  3. Only allows the transfer if both checks pass

​
Policy Definition

Here’s the complete policy configuration for the $KRYPT token:
{
  "Policy": " $KRYPT Policy",
  "Description": "This policy controls the KRYPT token in Martian Mining Demo App",
  "PolicyType": "open",
  "CallingFunctions": [
    {
      "Name": "Transfer",
      "FunctionSignature": "transfer(address to, uint256 value)",
      "EncodedValues": "address to, uint256 value"
    },
    {
      "Name": "TransferFrom",
      "FunctionSignature": "transferFrom(address from, address to, uint256 value)",
      "EncodedValues": "address from, address to, uint256 value"
    }
  ],
  "ForeignCalls": [
    {
      "Name": "OFACDeniedForTransfer",
      "Address": "0x333172b31BA33EFC4874315D1894c2016d325D3f",
      "Function": "isDenied(address)",
      "ReturnType": "bool",
      "ValuesToPass": "to",
      "MappedTrackerKeyValues": "",
      "CallingFunction": "Transfer"
    },
    {
      "Name": "OFACDeniedForTransferFrom",
      "Address": "0x333172b31BA33EFC4874315D1894c2016d325D3f",
      "Function": "isDenied(address)",
      "ReturnType": "bool",
      "ValuesToPass": "to",
      "MappedTrackerKeyValues": "",
      "CallingFunction": "TransferFrom"
    },
    {
      "Name": "KYCDeniedForTransfer",
      "Address": "0x85092B1D66B05c8898aDA2b1864EA01F48C600BF",
      "Function": "getAccessLevel(address)",
      "ReturnType": "uint256",
      "ValuesToPass": "to",
      "MappedTrackerKeyValues": "",
      "CallingFunction": "Transfer"
    },
    {
      "Name": "KYCDeniedForTransferFrom",
      "Address": "0x85092B1D66B05c8898aDA2b1864EA01F48C600BF",
      "Function": "getAccessLevel(address)",
      "ReturnType": "uint256",
      "ValuesToPass": "to",
      "MappedTrackerKeyValues": "",
      "CallingFunction": "TransferFrom"
    }
  ],
  "MappedTrackers": [],
  "Trackers": [],
  "Rules": [
    {
      "Name": "OFAC Deny List for Transfer",
      "Description": "This rule checks if the receiver is on the OFAC Deny List for the transfer function",
      "Condition": "FC:OFACDeniedForTransfer == false",
      "PositiveEffects": [],
      "NegativeEffects": ["revert(\"Receiver is on OFAC Deny List\")"],
      "CallingFunction": "Transfer"
    },
    {
      "Name": "OFAC Deny List for TransferFrom",
      "Description": "This rule checks if the receiver is on the OFAC Deny List for the transferFrom function",
      "Condition": "FC:OFACDeniedForTransferFrom == false",
      "PositiveEffects": [],
      "NegativeEffects": ["revert(\"Receiver is on OFAC Deny List\")"],
      "CallingFunction": "TransferFrom"
    },
    {
      "Name": "KYC Enforcement for Transfer",
      "Description": "This rule ensures wallet has completed KYC for the transfer function",
      "Condition": "FC:KYCDeniedForTransfer > 0",
      "PositiveEffects": [],
      "NegativeEffects": ["revert(\"Insufficient KYC Access Level\")"],
      "CallingFunction": "Transfer"
    },
    {
      "Name": "KYC Enforcement for TransferFrom",
      "Description": "This rule ensures wallet has completed KYC for the transferFrom function",
      "Condition": "FC:KYCDeniedForTransferFrom > 0",
      "PositiveEffects": [],
      "NegativeEffects": ["revert(\"Insufficient KYC Access Level\")"],
      "CallingFunction": "TransferFrom"
    }
  ]
}

​
How the Rules Work

​
OFAC Sanctions Screening

The OFAC rules query an onchain oracle contract to check if the recipient address is on the sanctions list:
  • Foreign Call: isDenied(address) returns true if the address is sanctioned
  • Rule Logic: If FC:OFACDeniedForTransfer == false, the transfer is blocked
  • Result: Sanctioned addresses cannot receive $KRYPT tokens

​
KYC Access Level Requirement

The KYC rules verify that the recipient has completed appropriate identity verification:
  • Foreign Call: getAccessLevel(address) returns a uint256 representing KYC level (0 = no KYC, >0 = KYC completed)
  • Rule Logic: If FC:KYCDeniedForTransfer > 0, the wallet has completed KYC
  • Result: Only KYC-verified wallets can receive $KRYPT tokens
Both rules check the recipient (to) address, not the sender. This ensures compliance is maintained for all token holdings, preventing tokens from entering non-compliant wallets regardless of who initiates the transfer.

​
Contract Integration

The KryptToken contract integrates with the Rules Engine by inheriting from RulesEngineClientCustom and applying modifiers to the transfer functions:
// SPDX-License-Identifier: MIT
pragma solidity ^0.8.24;

import "src/RulesEngineIntegration.sol";
import "@openzeppelin/contracts/token/ERC20/ERC20.sol";
import "@openzeppelin/contracts/access/AccessControl.sol";

contract KryptToken is RulesEngineClientCustom, ERC20, AccessControl {
    bytes32 constant TOKEN_ADMIN_ROLE = keccak256("TOKEN_ADMIN_ROLE");

    constructor(address _tokenAdmin) ERC20("Krypt Token", "$KRYPT") {
        _grantRole(TOKEN_ADMIN_ROLE, _tokenAdmin);
        _setRoleAdmin(TOKEN_ADMIN_ROLE, TOKEN_ADMIN_ROLE);
    }

    function setCallingContractAdmin(
        address callingContractAdmin
    ) public override onlyRole(TOKEN_ADMIN_ROLE) {
        super.setCallingContractAdmin(callingContractAdmin);
    }

    function mint(
        address to,
        uint256 amount
    ) public onlyRole(TOKEN_ADMIN_ROLE) {
        _mint(to, amount);
    }

    function transfer(
        address to,
        uint256 value
    ) public override checkRulesBeforeTransfer(to, value) returns (bool) {
        return super.transfer(to, value);
    }

    function transferFrom(
        address from,
        address to,
        uint256 value
    )
        public
        override
        checkRulesBeforeTransferFrom(from, to, value)
        returns (bool)
    {
        return super.transferFrom(from, to, value);
    }
}

​
Rule Execution Flow

When a user attempts to transfer $KRYPT tokens:
  1. User calls transfer() or transferFrom(): The transaction is initiated
  2. Rules Engine intercepts: The modifier checkRulesBeforeTransfer or checkRulesBeforeTransferFrom executes first
  3. Foreign Calls execute:
    • OFACDeniedForTransfer checks the recipient against the sanctions list
    • KYCDeniedForTransfer checks the recipient’s KYC status
  4. Rules evaluate:
    • If recipient is sanctioned → transaction reverts
    • If recipient lacks KYC → transaction reverts
    • If both checks pass → transfer proceeds
  5. Transfer executes: If all rules pass, the standard ERC-20 transfer completes

​
Why Both Functions Are Protected

The policy includes rules for both transfer and transferFrom to ensure comprehensive coverage:
  • transfer(): Direct transfers where the sender is the token owner
  • transferFrom(): Approval-based transfers using allowances
It’s critical to protect both functions to prevent bypassing compliance checks through allowance-based transfers.

​
